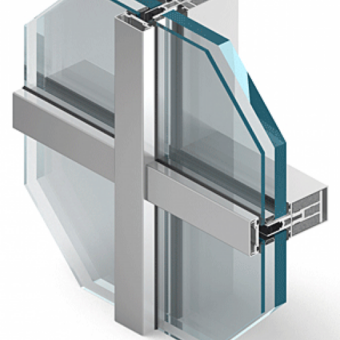

Fire-rated mullion and transom curtain wall GL-sr 50EI
Aluprof fire protection systems allow to make different building elements responsible for organisation so called fire zones in buildings and ensure suitable conditions for evacuating people.
Mullion-transom curtain walls GL-SR50N EI and GL-SR50N EI EFEKT are designed for fabrication of lightweight, hung & in-filled fire-resistant curtain walls classified fireresistant EI 30-EI 60. They allow to create both flat and frangible walls with connections between modules up to ± 7,5° aside and tilted curtain walls inclined ± 10°. These curtain walls can use GL-78EI-based fire doors. GLSR50N EI and GL-SR50N EI EFEKT systems can be used as a basis for fire-resistant glazed roofs of an inclination angle of 0° to 80° classified fire-resistant REI 30 / RE 45.
FEATURES AND BENEFITS
- the same appearance for fire and non-fire rated elements of curtain wall facade
- various design and aesthetics options for capping
- system flexibility allows facetted joints up to ±7,5° per side, and inclined facades up to ±10° as well as slope & roof glazing between 0° and 80°
- full compatibility with GL-78EI system allows fire rated door to be fitted into a curtain wall
