GL-EXPO SEAL SYSTEMS
GL-EXPO fixed and mobile partition walling system is used to fabricate internal partition walls, distinguishing themselves by a tempered glass pane fixed in clamp profiles which is their structural component. The components of this system allow the fabrication of fixed walls, all-glass hinged and swinging-type doors and parked doors’ segments – accordion and folding doors. The solution is oriented mainly towards shopping malls and office buildings.

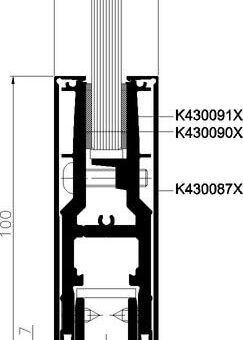

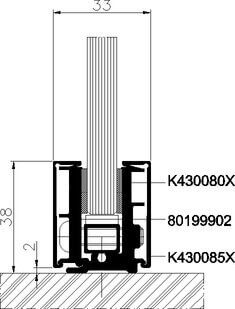

The GL-EXPO system can be used up to a maximum height of about 4m with maximum leaves width amounting to 1.4m. It has two groups of profiles of different heights [from the floor level]: low – 36mm and high – 100mm. Profiles’ structural depth is of 33mm for low profiles and 35mm for high profiles, but there is a possibility of equalization by using wider decorative profiles. The system allows to use tempered glass of the following thicknesses: 8, 10, and 12 mm. The glazing gaskets are not visible, whichever the side. The height of the profiles and the depth of the structure can be increased by prolonged or extended decorative profiles.
CHARACTERISTICS OF THE GL-EXPO SYSTEM
- Using the GL-EXPO system allows to easily change the functionality of the interior spaces and to divide the interiors’ surface. We also have a possibility to choose among different finishes of aluminium decorative profiles on both sides [“bicolour”] and to use the stainless steel strips. For 100 mm high profiles, it is possible to use lower brush seals to increase the tightness of the leaf. An important advantage of this system is its versatility and the possibility to use hardware manufactured by many companies.
